| Well number | K37/0457 | File number | CO6C/06743 |
|---|---|---|---|
| Last known owner | Leadley, S.R. | Well status | Not Used |
| Street/road | 302 Tinwald-Westerfield-Mayfield Road | NZTM grid reference | BY21:95278-39056 |
| Locality | Lagmhor | NZTM X and Y | 1495278 - 5139056 |
| Location description | In corner of two sheds behind house | Location accuracy | 1 - 2m |
| CWMS zone | Ashburton | Use | Domestic Supply, |
| Groundwater allocation zone | Hakatere/Ashburton River | Water level monitoring | -- |
| Depth | 9.00m | Water level count | 4 |
| Diameter | 150mm | Initial water level | 5.00m below MP |
| Measuring point description | ToC | Highest water level | 2.43m below MP |
| Measuring point elevation | 110.02m above MSL (Lyttelton 1937) | Lowest water level | 4.92m below MP |
| Elevation accuracy | < 0.5 m | First reading | 13 Feb 2003 |
| Ground level | 0.23m below MP | Last reading | 25 May 2004 |

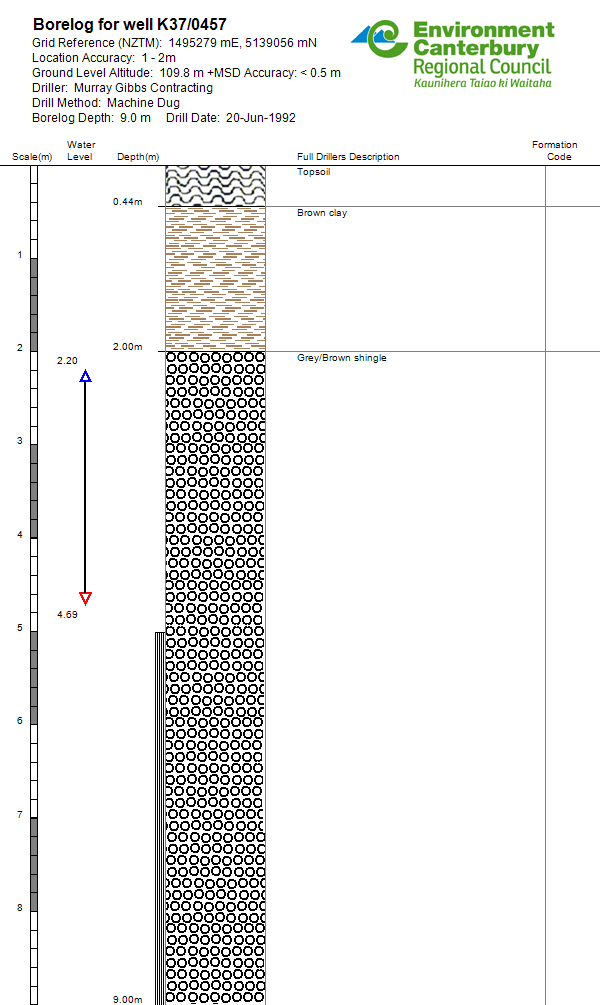

| Strata layers | 3 | Calc min 80% | 3.89m below MP (Estimated) |
| Aquifer name | Aquifer tests | 0 | |
| Aquifer type | Water Table | Yield drawdown tests | 1 |
| Drill date | 20 Jun 1992 | Max tested yield | 8 l/s |
| Driller | Murray Gibbs Contracting | Drawdown at max tested yield | 2 m |
| Drilling method | Machine Dug | Specific capacity | 4.00 l/s/m |
| Casing material | PVC | Last updated | 29 Jun 2023 |
| Pump type | Centrifugal (Surface) | Last field check | 10 Aug 2005 |
| Water use data | No |
Screens
| Screen no. | Screen type | Top (m) | Bottom (m) | Slot size (mm) | Slot length (mm) | Diameter (mm) | Leader length (mm) |
|---|---|---|---|---|---|---|---|
| 1 | Slotted PVC | 5 | 9 |
Step tests
| Step test date | Step | Yield | Yield GPM | DrawDown | Step duration |
|---|---|---|---|---|---|
| 20 Jun 1992 | 1 | 8 | 105.585472 | 2 | 1 |
Comments
| Comment date | Comment |
|---|---|
| 14 Feb 2003 | Gridref changed from: K37:0523-0077 |
| 08 Jun 2004 | Gridref changed from K37:05246-00682, reference RL from 112.000, differential GPS survey, May 2004 |
| 12 Aug 2005 | Well inside large locked shed. Well not located or measured. Owner reticent about allowing access unless called a day ahead of time. Not considered for ongoing monitoring for this reason. |
| 20 Oct 2006 | On three occasions in summer 2005 this well failed. Winter 2006 quantities of sand and git material coming through pump. |
