| Well number | K37/3246 | File number | CO6C/29301 |
|---|---|---|---|
| Last known owner | Mr & Mrs P J & G S Watson | Well status | Active (exist, present) |
| Street/road | 132 HOLLANDS ROAD | NZTM grid reference | BY21:97227-38432 |
| Locality | Tinwald | NZTM X and Y | 1497227 - 5138432 |
| Location description | Location accuracy | 10 - 50m | |
| CWMS zone | Ashburton | Use | Domestic Supply, |
| Groundwater allocation zone | Hakatere/Ashburton River | Water level monitoring | -- |
| Depth | 28.61m | Water level count | 0 |
| Diameter | 150mm | Initial water level | 2.91m below MP |
| Measuring point description | Highest water level | ||
| Measuring point elevation | 101.99m above MSL (Lyttelton 1937) | Lowest water level | |
| Elevation accuracy | < 2.5 m | First reading | |
| Ground level | 0.00m above MP | Last reading | |

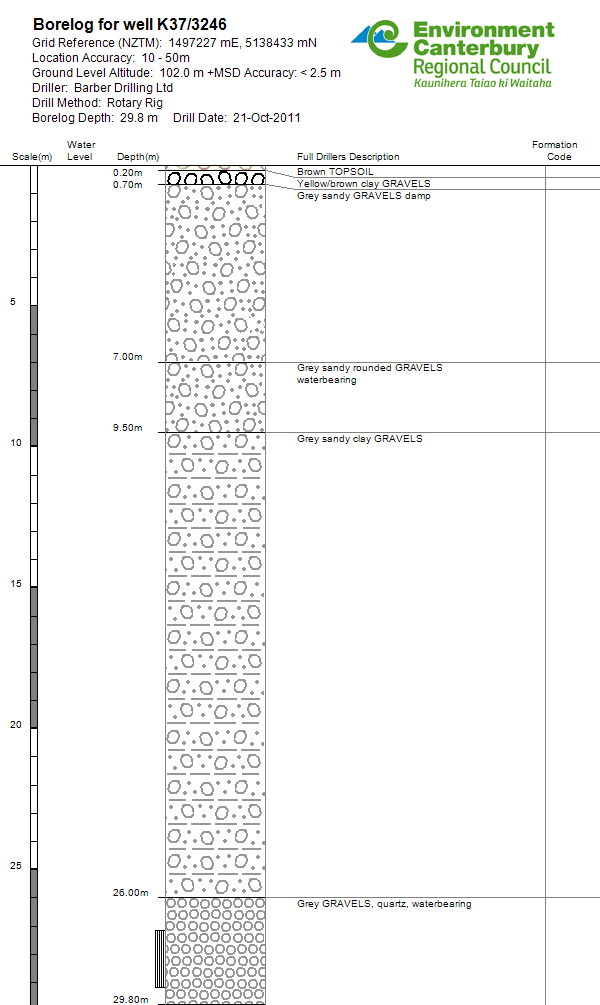

| Strata layers | 6 | Calc min 80% | 10.86m below MP (Estimated) |
| Aquifer name | Aquifer tests | 0 | |
| Aquifer type | Yield drawdown tests | 1 | |
| Drill date | 21 Oct 2011 | Max tested yield | 2 l/s |
| Driller | Barber Drilling Ltd | Drawdown at max tested yield | 6 m |
| Drilling method | Rotary Rig | Specific capacity | 0.38 l/s/m |
| Casing material | Last updated | 29 Jun 2023 | |
| Pump type | Last field check | 21 Mar 2016 | |
| Water use data | No |
Screens
| Screen no. | Screen type | Top (m) | Bottom (m) | Slot size (mm) | Slot length (mm) | Diameter (mm) | Leader length (mm) |
|---|---|---|---|---|---|---|---|
| 1 | Stainless steel | 27.11 | 29.11 | 1.524 | 125 |
Step tests
| Step test date | Step | Yield | Yield GPM | DrawDown | Step duration |
|---|---|---|---|---|---|
| 21 Oct 2011 | 1 | 2.3 | 30.3558216 | 6 | 0 |
Comments
| Comment date | Comment |
|---|---|
| 22 Aug 2018 | Nick Vernon comment states this site is nothing but a hole in the ground |
| 10 Jan 2023 | Reference Level updated using LiDAR imagery in Dec 2022. The existing RL was 102.54 and the QAR RL was 4. The method of calculating the original RL was: Interpolated DTM. If GL from MP is updated in future please assess if RL also needs to be updated. |
| 10 May 2023 | Dec 2022 Reference Level update using LiDAR was in NZVD 2016, rather than Lyttelton 1937. Rectified in May 2023 by using the previously determined LiDAR elevation value and LINZ conversion tool to calculate Lyttelton 1937 elevation and update Reference Level field. Reference Level updated from 101.624m to 101.988m. |
| 18 Nov 2024 | Based on desktop analysis done in 2022, it is likely that this well, K37/3246, replaced well K37/2080 |
