| Well number | K38/1669 | File number | CO6C/11753 |
|---|---|---|---|
| Last known owner | Poplars Farm Limited | Well status | Active (exist, present) |
| Street/road | CANAL ROAD | NZTM grid reference | BZ20:68674-05430 |
| Locality | Temuka | NZTM X and Y | 1468674 - 5105430 |
| Location description | Location accuracy | 2 - 15m | |
| CWMS zone | Orari-Temuka-Opihi-Pareora | Use | Irrigation, |
| Groundwater allocation zone | Orari-Opihi | Water level monitoring | -- |
| Depth | 9.00m | Water level count | 1 |
| Diameter | 500mm | Initial water level | 2.60m below MP |
| Measuring point description | ToC | Highest water level | 2.30m below MP |
| Measuring point elevation | 30.90m above MSL (Lyttelton 1937) | Lowest water level | 2.30m below MP |
| Elevation accuracy | < 0.5 m | First reading | 01 Oct 2007 |
| Ground level | 0.20m below MP | Last reading | 01 Oct 2007 |

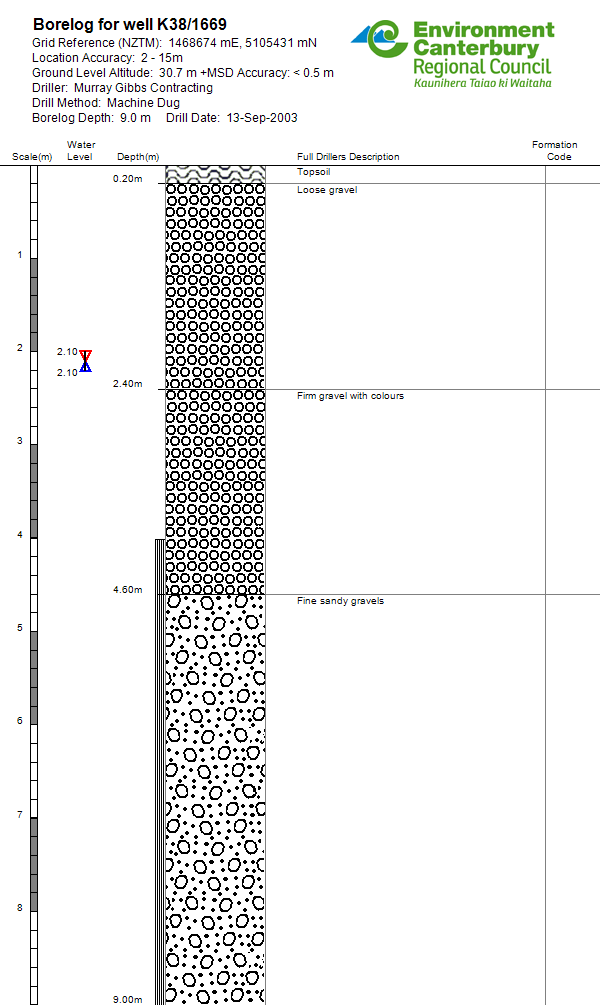

| Strata layers | 4 | Calc min 80% | 3.05m below MP (Estimated) |
| Aquifer name | Aquifer tests | 0 | |
| Aquifer type | Yield drawdown tests | 1 | |
| Drill date | 13 Sep 2003 | Max tested yield | 42 l/s |
| Driller | Murray Gibbs Contracting | Drawdown at max tested yield | 9 m |
| Drilling method | Machine Dug | Specific capacity | 4.90 l/s/m |
| Casing material | PVC | Last updated | 29 Jun 2023 |
| Pump type | Last field check | 01 Oct 2007 | |
| Water use data | Yes |
Screens
| Screen no. | Screen type | Top (m) | Bottom (m) | Slot size (mm) | Slot length (mm) | Diameter (mm) | Leader length (mm) |
|---|---|---|---|---|---|---|---|
| 1 | Slotted PVC | 4 | 9 |
Step tests
| Step test date | Step | Yield | Yield GPM | DrawDown | Step duration |
|---|---|---|---|---|---|
| 13 Sep 2003 | 1 | 41.6724 | 550 | 8.5 | 2 |
Comments
| Comment date | Comment |
|---|---|
| 04 Aug 2003 | This is the first chioce of bore-site. Bore K38/1670 will be used if this bore proves dry. |
| 04 Aug 2003 | Attached as K38/1768 |
| 07 May 2004 | Gallery reported by Bob Hall (Consultant) to be 30m long, 5 metres deep, 2 metres wide orientated in an e-w direction and backfilled |
| 21 Nov 2006 | Gridref changed from: K38:7861-6696 Field visit conducted by Boraman Consultants Ltd for the Orari Integrated Catchment Study. |
| 14 Jan 2008 | Gallery K38/1768 does not exist and is not consented. The gallery associated with this bore is K38/1669 as per above comment 7/5/04. |
| 10 Jan 2023 | Reference Level updated using LiDAR imagery in Dec 2022. The existing RL was 25.42 and the QAR RL was 4. The method of calculating the original RL was: Interpolated DTM. If GL from MP is updated in future please assess if RL also needs to be updated. |
| 10 May 2023 | Dec 2022 Reference Level update using LiDAR was in NZVD 2016, rather than Lyttelton 1937. Rectified in May 2023 by using the previously determined LiDAR elevation value and LINZ conversion tool to calculate Lyttelton 1937 elevation and update Reference Level field. Reference Level updated from 30.523m to 30.898m. |
| 19 Jun 2023 | In the original wells Database, this Bore + Gallery had associated gallery details, which were not migrated over due to this Bore + Gallery not strictly being a gallery. The details were: Length - 100m. Width - 4m. Depth - 5m. Direction - SW |
