| Well number | M35/10174 | File number | CO6C/21660 |
|---|---|---|---|
| Last known owner | Paul Chinnery | Well status | Active (exist, present) |
| Street/road | 128 gladstone rd | NZTM grid reference | BW24:74128-03299 |
| Locality | Kaiapoi | NZTM X and Y | 1574128 - 5203299 |
| Location description | Location accuracy | 50 - 300m | |
| CWMS zone | Waimakariri | Use | Domestic Supply, |
| Groundwater allocation zone | Ashley | Water level monitoring | -- |
| Depth | 18.00m | Water level count | 1 |
| Diameter | 150mm | Initial water level | 3.95m below MP |
| Measuring point description | Highest water level | 3.00m below MP | |
| Measuring point elevation | 7.95m above MSL (Lyttelton 1937) | Lowest water level | 3.00m below MP |
| Elevation accuracy | < 2.5 m | First reading | 17 Feb 2010 |
| Ground level | 0.00m above MP | Last reading | 17 Feb 2010 |

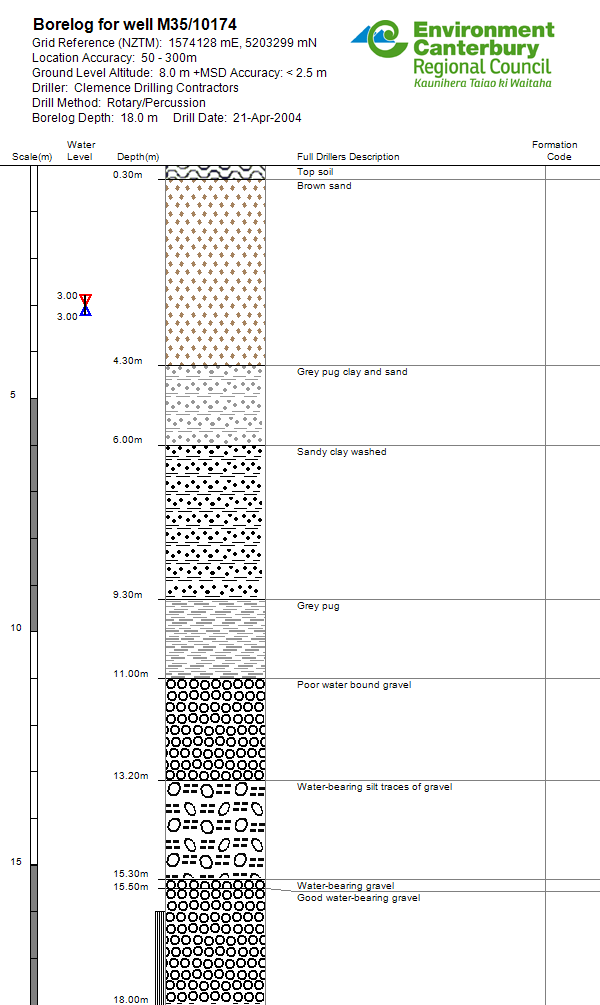

| Strata layers | 9 | Calc min 80% | 2.30m below MP (Estimated) |
| Aquifer name | Aquifer tests | 0 | |
| Aquifer type | Yield drawdown tests | 1 | |
| Drill date | 21 Apr 2004 | Max tested yield | 3 l/s |
| Driller | Clemence Drilling Contractors | Drawdown at max tested yield | 6 m |
| Drilling method | Rotary/Percussion | Specific capacity | 0.55 l/s/m |
| Casing material | STEEL | Last updated | 29 Jun 2023 |
| Pump type | Last field check | 17 Feb 2010 | |
| Water use data | No |
Screens
| Screen no. | Screen type | Top (m) | Bottom (m) | Slot size (mm) | Slot length (mm) | Diameter (mm) | Leader length (mm) |
|---|---|---|---|---|---|---|---|
| 1 | Stainless steel | 15.97 | 18 |
Step tests
| Step test date | Step | Yield | Yield GPM | DrawDown | Step duration |
|---|---|---|---|---|---|
| 21 Apr 2004 | 1 | 3 | 39.59455 | 5.5 | 3 |
Comments
| Comment date | Comment |
|---|---|
| 10 Jan 2023 | Reference Level updated using LiDAR imagery in Dec 2022. The existing RL was 6.18 and the QAR RL was 4. The method of calculating the original RL was: Interpolated DTM. If GL from MP is updated in future please assess if RL also needs to be updated. |
