| Well number | M36/20386 | File number | CO6C/19640 |
|---|---|---|---|
| Last known owner | MOBIL OIL NEW ZEALAND LIMITED | Well status | Active (exist, present) |
| Street/road | NAVAL POINT TERMINAL, GEORGE SEYMOR QUAY | NZTM grid reference | BX24:76369-71658 |
| Locality | Lyttelton | NZTM X and Y | 1576369 - 5171658 |
| Location description | Location accuracy | 2 - 15m | |
| CWMS zone | Banks Peninsula | Use | Geotechnical / Geological Investigation, |
| Groundwater allocation zone | Outside Area | Water level monitoring | -- |
| Depth | 3.00m | Water level count | 0 |
| Diameter | 50mm | Initial water level | |
| Measuring point description | Highest water level | ||
| Measuring point elevation | 3.94m above MSL (Lyttelton 1937) | Lowest water level | |
| Elevation accuracy | < 0.5 m | First reading | |
| Ground level | 0.00m above MP | Last reading | |

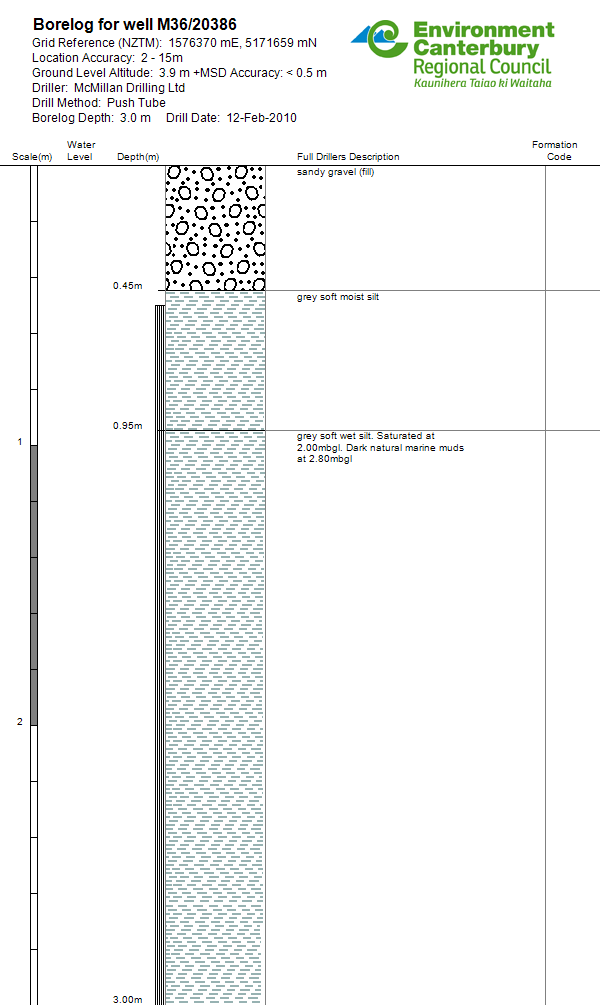

| Strata layers | 3 | Calc min 80% | |
| Aquifer name | Aquifer tests | 0 | |
| Aquifer type | Yield drawdown tests | 0 | |
| Drill date | 12 Feb 2010 | Max tested yield | |
| Driller | McMillan Drilling Ltd | Drawdown at max tested yield | |
| Drilling method | Push Tube | Specific capacity | |
| Casing material | PVC | Last updated | 29 Jun 2023 |
| Pump type | Last field check | ||
| Water use data | No |
Screens
| Screen no. | Screen type | Top (m) | Bottom (m) | Slot size (mm) | Slot length (mm) | Diameter (mm) | Leader length (mm) |
|---|---|---|---|---|---|---|---|
| 1 | Slotted PVC | 0.5 | 3 |
No step tests for this well
Comments
| Comment date | Comment |
|---|---|
| 20 Aug 2010 | Gridref changed from: M36:8635-3325 to M36:86372-33267 and set to an accuracy of QAR 2. BCR confirms |
| 10 Jan 2023 | Reference Level updated using LiDAR imagery in Dec 2022. The existing RL was 18. and the QAR RL was 4. The method of calculating the original RL was: Interpolated DTM. If GL from MP is updated in future please assess if RL also needs to be updated. |
| 10 May 2023 | Dec 2022 Reference Level update using LiDAR was in NZVD 2016, rather than Lyttelton 1937. Rectified in May 2023 by using the previously determined LiDAR elevation value and LINZ conversion tool to calculate Lyttelton 1937 elevation and update Reference Level field. Reference Level updated from 3.535m to 3.936m. |
