| Well number | O31/0365 | File number | CO6C/20045 |
|---|---|---|---|
| Last known owner | VL Smith & Sons Limited | Well status | Active (exist, present) |
| Street/road | 222 Beach Road | NZTM grid reference | BT27:56133-07902 |
| Locality | Kaikoura | NZTM X and Y | 1656133 - 5307902 |
| Location description | Ask at office for access to well | Location accuracy | 1 - 2m |
| CWMS zone | Kaikoura | Use | Water Level Observation, |
| Groundwater allocation zone | Kaikoura-Mt Fyffe | Water level monitoring | -- |
| Depth | 10.20m | Water level count | 2 |
| Diameter | 51mm | Initial water level | |
| Measuring point description | Groundlevel | Highest water level | 8.36m below MP |
| Measuring point elevation | 7.95m above MSL (Lyttelton 1937) | Lowest water level | 8.36m below MP |
| Elevation accuracy | < 0.5 m | First reading | 01 Jul 2015 |
| Ground level | 0.00m above MP | Last reading | 01 Jul 2015 |

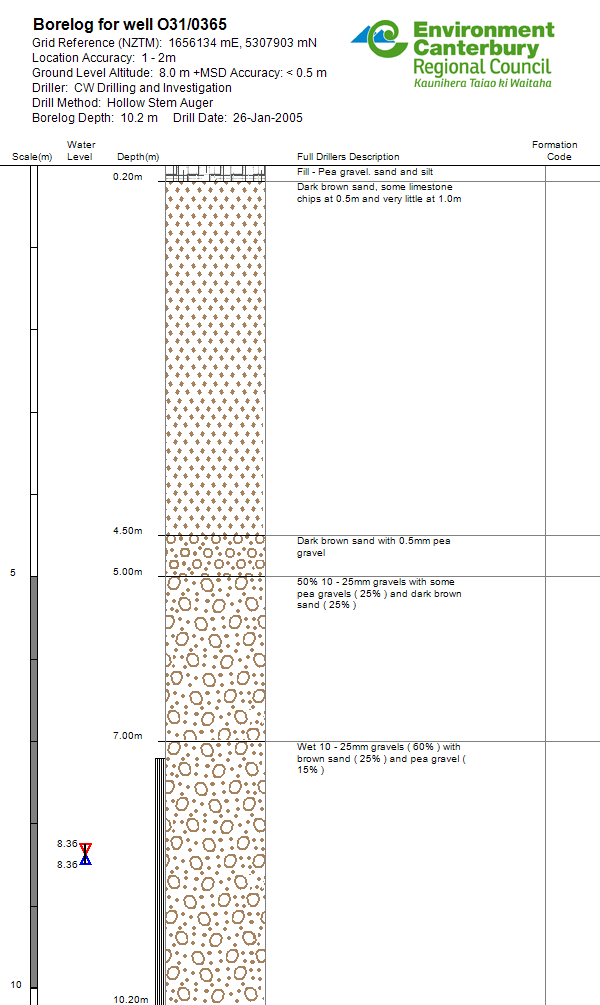

| Strata layers | 5 | Calc min 80% | 8.36m below MP (Estimated) |
| Aquifer name | Aquifer tests | 0 | |
| Aquifer type | Yield drawdown tests | 0 | |
| Drill date | 26 Jan 2005 | Max tested yield | |
| Driller | CW Drilling and Investigation | Drawdown at max tested yield | |
| Drilling method | Hollow Stem Auger | Specific capacity | |
| Casing material | PVC | Last updated | 29 Jun 2023 |
| Pump type | Last field check | 01 Jul 2015 | |
| Water use data | No |
Screens
| Screen no. | Screen type | Top (m) | Bottom (m) | Slot size (mm) | Slot length (mm) | Diameter (mm) | Leader length (mm) |
|---|---|---|---|---|---|---|---|
| 1 | Slotted PVC | 7.2 | 10.2 |
No step tests for this well
Comments
| Comment date | Comment |
|---|---|
| 24 Feb 2005 | New grid ref on BCR E 2390110 N 5707282. This ref falls in the K37 block. Not changed |
| 04 Aug 2006 | Gridref changed from: O31:6614-6959. Gridref taken from positions on map in the BCR then using GIS on an airphoto of the complex |
| 27 Aug 2015 | NZTM Easting/Northing updated from:1656128-5307911 shifted 10m Updated grid ref and RL from surveying. See TRIM Ref C15C/127883 and TRIM Ref C15C/127884 |
| 29 Mar 2016 | MP Reference Accuracy updated to DGPS <0.5 and MP QAR updated to 2. Survey in 2015 levelled in Ground Level. RL then updated by combining surveyed level and Ground Level from MP measurements. This is not accurate enough for RL QAR 1. |
