| Well number | O31/0439 | File number | CO6C/13836 |
|---|---|---|---|
| Last known owner | Kaikoura District Council | Well status | Active (exist, present) |
| Street/road | INLAND ROAD | NZTM grid reference | BT27:41973-07820 |
| Locality | Kaikoura | NZTM X and Y | 1641973 - 5307820 |
| Location description | Follow power lines on north side of Kaikoura inland road. | Location accuracy | 2 - 15m |
| CWMS zone | Kaikoura | Use | Public Water Supply, |
| Groundwater allocation zone | Outside Area | Water level monitoring | -- |
| Depth | 18.45m | Water level count | 0 |
| Diameter | 200mm | Initial water level | 3.05m below MP |
| Measuring point description | Highest water level | ||
| Measuring point elevation | 132.19m above MSL (Lyttelton 1937) | Lowest water level | |
| Elevation accuracy | < 0.5 m | First reading | |
| Ground level | 0.00m above MP | Last reading | |

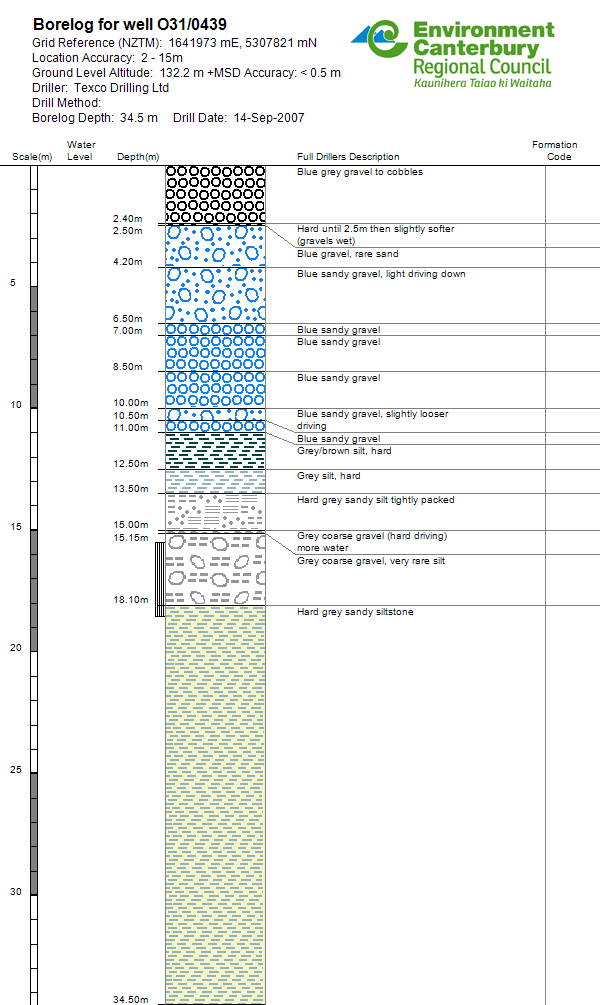

| Strata layers | 15 | Calc min 80% | |
| Aquifer name | Aquifer tests | 0 | |
| Aquifer type | Yield drawdown tests | 0 | |
| Drill date | 14 Sep 2007 | Max tested yield | |
| Driller | Texco Drilling Ltd | Drawdown at max tested yield | |
| Drilling method | Unknown | Specific capacity | |
| Casing material | Last updated | 29 Jun 2023 | |
| Pump type | Last field check | 11 Feb 2016 | |
| Water use data | No |
Screens
| Screen no. | Screen type | Top (m) | Bottom (m) | Slot size (mm) | Slot length (mm) | Diameter (mm) | Leader length (mm) |
|---|---|---|---|---|---|---|---|
| 1 | Stainless steel | 15.45 | 18.45 |
No step tests for this well
Comments
| Comment date | Comment |
|---|---|
| 18 Jul 2007 | Installed to supplement water supply from O31/0329 which has become unreliable/has insufficient water. |
| 13 Oct 2008 | Gridref changed from: O31:5204-6951 Plan received |
| 28 Jul 2016 | NZTM Easting/Northing updated from:1642173-5307974 shifted 252m. From CDWS field QA summer 2015/2016. Other CDWS and well details updated where required. |
| 29 Jul 2016 | Surrounding landuse from CDWS field QA: Agricultural - sheep and cattle. |
| 21 Nov 2016 | CDWS Protection zone updated Nov 2016 based on location coordinate update for well. |
| 10 Jan 2023 | Reference Level updated using LiDAR imagery in Dec 2022. The existing RL was 134.55 and the QAR RL was 4. The method of calculating the original RL was: Interpolated DTM. If GL from MP is updated in future please assess if RL also needs to be updated. |
| 10 May 2023 | Dec 2022 Reference Level update using LiDAR was in NZVD 2016, rather than Lyttelton 1937. Rectified in May 2023 by using the previously determined LiDAR elevation value and LINZ conversion tool to calculate Lyttelton 1937 elevation and update Reference Level field. Reference Level updated from 131.803m to 132.187m. |
