Dam safety graphs


Dams stored volume

Normal operating volume

Dam height/Reservoir depth

Freeboard /crest width and Spillway width/crest length

Dams stored volume

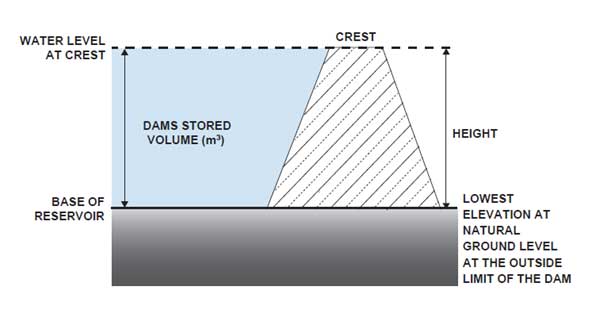

Reservoir at natural ground level or higher than natural ground level

Reservoir at natural ground level or higher than natural ground level

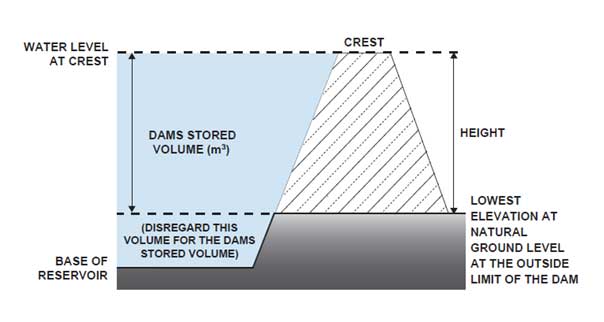

Reservoir lower than natural ground level

Reservoir lower than natural ground level

Normal operating volume

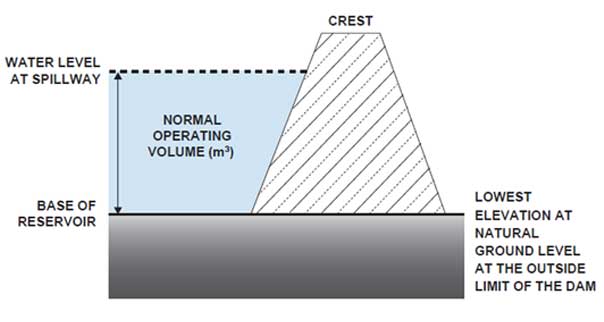

Reservoir at natural ground level or higher than natural ground level

Reservoir at natural ground level or higher than natural ground level

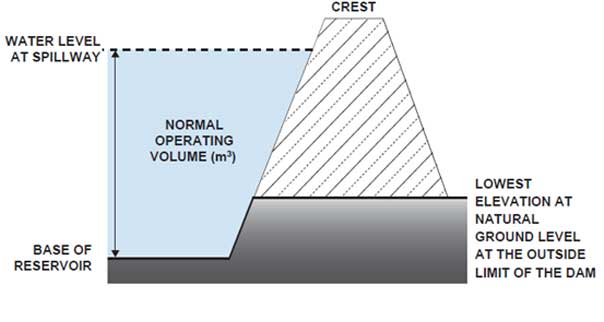

Reservoir lower than natural ground level

Reservoir lower than natural ground level

Dam height/Reservoir depth

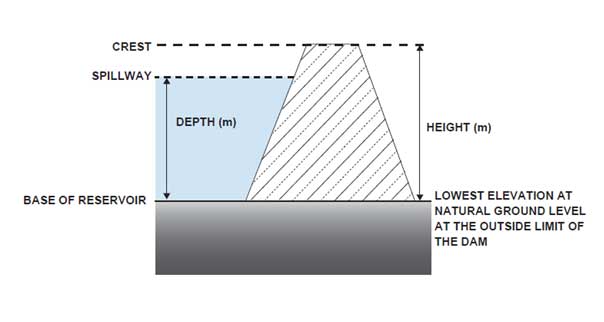

Reservoir at natural ground level or higher than natural ground level

Reservoir at natural ground level or higher than natural ground level

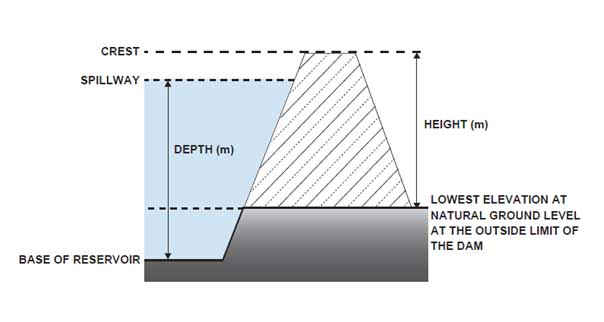

Reservoir lower than natural ground level

Reservoir lower than natural ground level

Freeboard /crest width and Spillway width/crest length

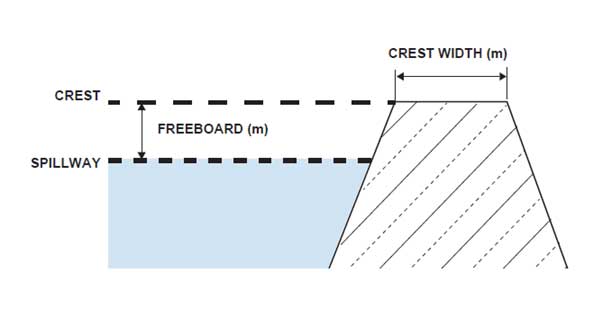

Freeboard /crest width

Freeboard /crest width

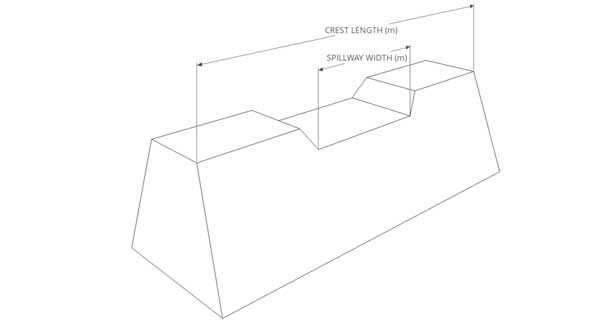

Spillway width/crest length

Spillway width/crest length

Spillway types
